A Bicycle Hub is the central structural component of a bicycle wheel that houses the axle, bearings, and freehub mechanism, directly determining rotational efficiency, wheel stiffness, power transfer, and long-term mechanical reliability.

At a Glance

Section

Summary

Mechanical Fundamentals of a Bicycle Hub

An exploration of how hub geometry, axle interfaces, shell alignment, and rotational physics dictate power transfer, lateral rigidity, and overall wheel system performance.

Precision Bearing Technology

A technical breakdown of sealed cartridge versus cup-and-cone systems, detailing load paths, friction coefficients, tolerance specs, and sealing arrangements.

Engagement Mechanisms and Power Transfer

An analysis of pawl-based versus star ratchet systems, evaluating engagement angles, torque distribution, fatigue resistance, and load capacity under heavy pedaling forces.

Shell Materials, Forging, and Machining

An examination of aluminum alloy grades, cold forging methodologies, high-precision CNC machining, and structural grain alignment for maximum strength-to-weight ratios.

Flange Geometry, Spoke Lacing, and Stiffness

A study on flange positioning, pitch circle diameters, asymmetric spoke angles, and torsional stiffness optimization for disc-brake and rim-brake wheelsets.

Axle Standards and Frame Integration

A guide to standard quick-release, thru-axle dimensions, spacing width conventions, and mechanical integration across road, gravel, and mountain bike platforms.

Maintenance, Longevity, and Serviceability

Practical guidelines on service intervals, dynamic weather sealing, bearing replacement protocols, and preventive maintenance strategies for fleet and OEM applications.

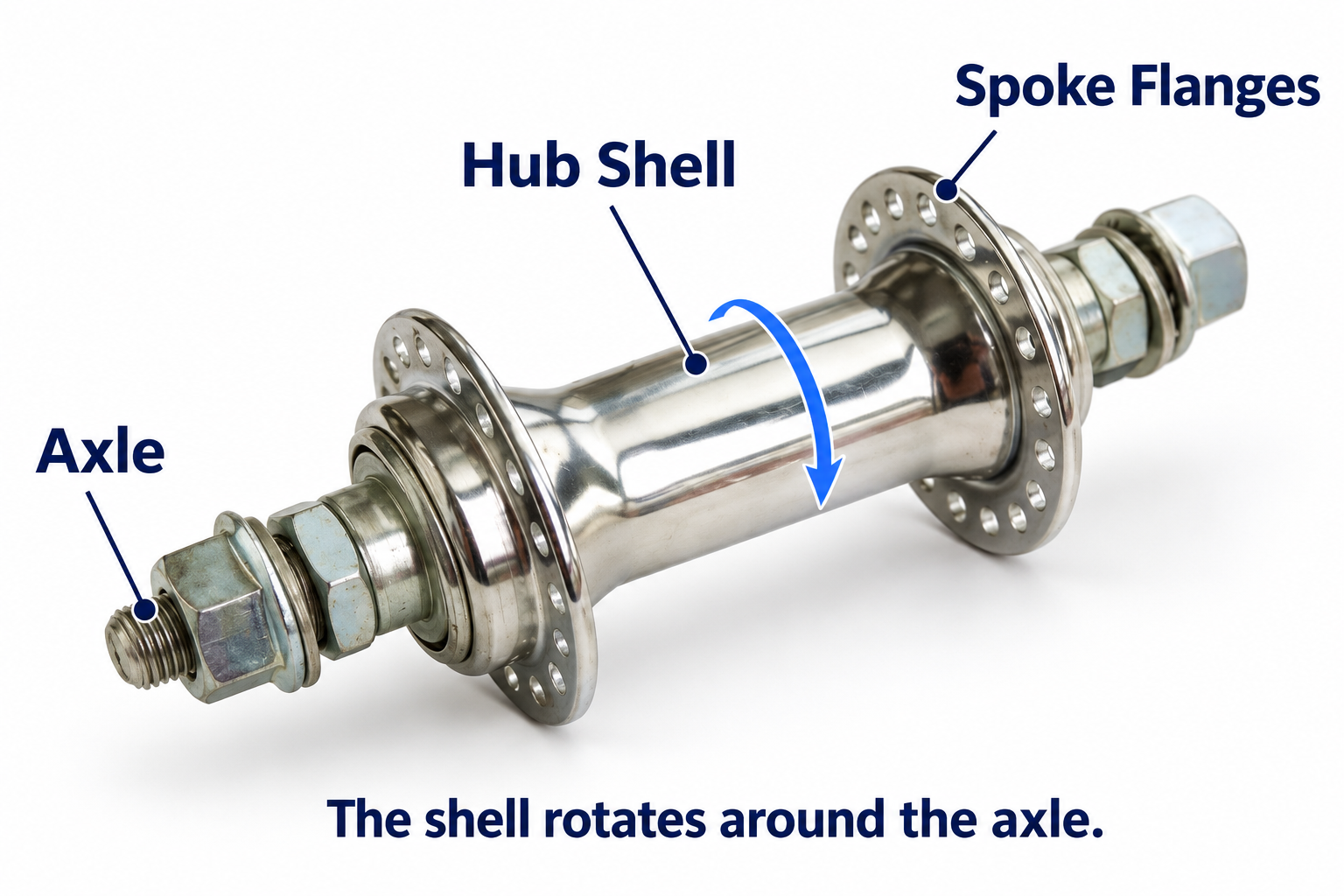

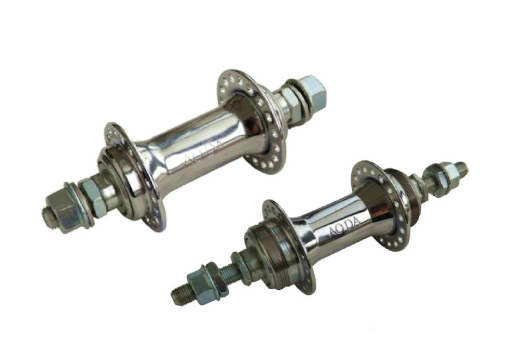

Bike Hub.png

Mechanical Fundamentals of a Bicycle Hub

The primary structural function of a Bicycle Hub is to convert linear pedal forces into smooth rotational motion while maintaining precise lateral wheel alignment under heavy dynamic loads.

Understanding the mechanical behavior of a Bicycle Hub requires analyzing the dynamic interactions between the central axle, internal bearings, hub shell, and spoke flange geometry. When a cyclist pedals or corners, the hub experiences complex multi-directional force vectors, including radial loads from rider weight, axial loads from leaning during turns, and severe torsional loads generated by chain tension and disc braking.

The outer shell acts as a structural bridge, transmitting energy from the drivetrain through the spokes to the rim and tire. If the hub shell or internal axle suffers from radial deformation under load, the internal bearings become misaligned. This structural deflection accelerates bearing wear, increases friction, and saps precious kinetic energy. High-performance hub design relies on maintaining rigid tolerances between bearing seats and axle contact points to preserve concentricity under continuous load cycling.

Industry engineering teams prioritize rotational inertia, structural stiffness, and frictional losses when developing modern hubs. For B2B clients sourcing component inventories, selecting hubs built on robust structural engineering yields lower failure rates, enhanced power transfer efficiency, and superior user satisfaction across demanding commercial and racing applications.

  1. Torsional Load Management: Highly rigid hub shells prevent rotational twisting during explosive acceleration and high-torque climbing.

  2. Axial Alignment Under Load: Axles with optimized wall thickness resist flex, maintaining precise alignment across inner bearing races during high-speed cornering.

  3. Radial Load Distribution: Strategic bearing placement distributes downforce evenly across the entire contact surface, preventing premature race pitting.

Precision Bearing Technology

Precision bearings dictate the rolling resistance, load capability, and operational smoothness of a Bicycle Hub under real-world cycling conditions.

Hub bearing systems broadly fall into two engineering classifications: press-fit sealed cartridge bearings and adjustable cup-and-cone loose-ball systems. Modern commercial and performance bicycles overwhelmingly favor sealed cartridge units due to their consistent factory preloading, superior contamination defense, and straightforward replacement workflows. Precision radial cartridge bearings use hardened steel or ceramic rolling elements positioned between ground inner and outer races, packed with synthetic lubricants and protected by non-contact or contact lip seals.

Feature / Metric

Sealed Cartridge Bearings

Cup-and-Cone Bearings

Alignment Tolerance

High Precision (Factory Machined)

Dependent on Manual Adjustment

Contamination Defense

Dual Rubber Lip Seals (LLU/RS)

External Dust Caps & Felt Rings

Maintenance Requirement

Low (Drop-In Replacement)

High (Regular Cleaning & Repacking)

Friction Coefficient

Extremely Low (ABEC 3 to ABEC 5)

Variable (Subject to Preload Accuracy)

Axial Load Handling

High (Angular Contact Variants)

Moderate to High

Manufacturing tolerance standards, such as ABEC-3 or ABEC-5, directly affect bearing performance. Finer tolerances minimize radial runout and axial play, delivering buttery-smooth rotation and long-term durability. European B2B clients frequently specify high-grade stainless steel races or hybrid ceramic configurations (silicon nitride balls) to lower rotational drag and resist corrosion in high-humidity climates.

To ensure long-term dependability, high-torque installations require a Professional grade Hub High Stability to maintain precise bearing track alignment under extreme radial and lateral stress. Proper internal bearing spacer sizing ensures that clamping forces from modern thru-axles do not apply excessive side-load pressure onto the inner bearing races, preventing binding and pre-mature pitting.

Engagement Mechanisms and Power Transfer

The freehub engagement mechanism dictates how rapidly rear pedal input transmits torque to the drive wheel, defining acceleration responsiveness and mechanical efficiency.

Rear bicycle hubs utilize specialized drive mechanisms inside the freehub body to engage the wheel during pedaling and disengage it during coasting. The two predominant mechanical configurations are traditional multi-pawl systems and dual-face star ratchet systems. Pawl mechanisms rely on spring-loaded steel latches that pivot outward to catch internal ring teeth. Star ratchet systems, by contrast, utilize two facing rings with precision-machined teeth that engage simultaneously across their entire surface area.

Points of engagement (POE) and engagement angle determine the mechanical dead zone before torque reaches the rear wheel. An 18-tooth ring offers a 20-degree engagement angle, ideal for high-speed road applications where continuous pedaling is the norm. A 54-tooth ring reduces the engagement angle to 6.67 degrees, delivering near-instantaneous power response essential for technical mountain biking, trials riding, and explosive sprinting.

  1. Pawl Systems: Cost-effective and widely serviceable, but subject to localized point-loading stress on individual teeth.

  2. Star Ratchet Systems: Superior torque handling capacity due to broad face contact, distributing heavy forces across all teeth simultaneously.

  3. Engagement Speeds: Higher tooth counts decrease response lag but slightly increase mechanical drag while coasting.

Shell Materials, Forging, and Machining

Hub shell metallurgy and precision machining directly govern structural yield strength, weight distribution, and fatigue resistance under cyclic loads.

The construction of a premium Bicycle Hub shell begins with advanced aluminum alloys, primarily 6061-T6 or 7075-T6 grade formulations. Alloy selection establishes the core tensile strength, fatigue limit, and ultimate workability of the component shell.

The manufacturing process transitions from raw alloy stock to cold forging, followed by computer numerical control (CNC) finishing. Cold forging compresses the aluminum under massive hydraulic pressure, forcing the internal grain structure to align smoothly along the contours of the hub flanges and shell walls. This refined grain flow eliminates internal micro-voids, increasing structural fatigue resistance by up to 45% compared to cast or direct-machined billet components.

Post-forging CNC turning and milling operations establish precise bearing bore tolerances, spoke hole bevels, and disc rotor mounting interfaces down to sub-micron accuracy. Advanced 5-axis CNC machining removes non-structural alloy from low-stress zones, producing an ultralight shell without compromising torsional strength. Finally, hard-anodized surface treatments form a durable aluminum oxide outer layer, protecting the underlying metal against environmental corrosion, UV degradation, and mechanical abrasion.

Flange Geometry, Spoke Lacing, and Stiffness

Flange diameter, offset positioning, and spoke hole chamfering determine the overall lateral rigidity, torsional stability, and spoke fatigue life of the completed wheel assembly.

The structural stability of a bicycle wheel relies on the triangulation created between the hub flanges and the rim bed. This geometry, defined by the flange distance from the hub centerline and the Pitch Circle Diameter (PCD) of the spoke holes, establishes the bracing angle of the spokes. Wider bracing angles increase the wheel's lateral stiffness, resisting flex during out-of-saddle sprinting and aggressive cornering.

The integration of disc brakes introduces asymmetric loading on both front and rear wheel hubs. The front hub must accommodate the disc rotor flange on the left side, pushing the flange inward and creating uneven spoke bracing angles between the drive and non-drive sides. To compensate, modern wheel builders utilize high-stiffness Professional grade Hub High Stability assemblies with enlarged non-drive flanges, balancing spoke tension across both sides of the wheel.

  1. Pitch Circle Diameter (PCD): Larger flange diameters shorten spoke lengths, reducing elastic stretch under high torque and improving power transfer efficiency.

  2. Spoke Hole Chamfering: Precision-beveled spoke holes cradle the spoke elbow, preventing stress concentrations that cause premature fatigue fractures.

  3. Asymmetric Flange Offsets: Custom flange spacing balances tension ratios on dish-heavy rear wheels and disc-brake front hubs.

Axle Standards and Frame Integration

Axle configurations define the physical interface between the hub, fork, and bicycle frame, determining clamping force, alignment accuracy, and overall chassis stiffness.

The evolution of frame designs has driven a shift from traditional 5mm quick-release skewers toward solid, threaded thru-axle systems. Quick-release designs rely on friction clamping across open dropouts, making them susceptible to micro-flexing under heavy disc brake loads. Thru-axles pass directly through closed frame dropouts and the internal sleeve of the hub axle, forming a continuous structural cross-member that locks the entire chassis together.

Application Platform

Axle Standard

Hub Over-Locknut Distance (OLD)

Key Mechanical Objective

Road Rim Brake

Quick Release

100mm Front / 130mm Rear

Minimum Weight & Fast Wheel Changes

Road / Gravel Disc

12mm Thru-Axle

100mm Front / 142mm Rear

Precise Disc Alignment & Frame Rigidity

Mountain Bike (Boost)

15mm / 12mm Thru-Axle

110mm Front / 148mm Rear

Wide Flange Stance for 29er Wheel Stiffness

Downhill / E-Bike

20mm / 12mm Thru-Axle

110mm Front / 157mm Rear

Extreme Impact Resistance & Max Torque

The adoption of wider over-locknut distances (such as 110mm front and 148mm rear Boost spacing) allows hub designers to move flanges outward by several millimeters. This wider flange separation restores optimal spoke bracing angles on large-diameter 29-inch wheels and high-torque electric bicycles, resulting in significantly stronger and stiffer wheel builds.

For commercial fleets and high-use rental systems, standardizing thru-axle dimensions eliminates axle shift, prevents brake rotor rub, and simplifies routine maintenance across diverse bicycle styles.

Maintenance, Longevity, and Serviceability

A well-engineered Bicycle Hub must combine high performance with easy serviceability, enabling quick bearing replacement and seal maintenance without specialized tooling.

Long-term hub longevity depends on dynamic sealing systems that shield delicate internal components from water, mud, grit, and high-pressure washdown spray. Dual-lip rubber seals (such as LLU or LBR contact configurations) combined with labyrinth dust caps create a multi-stage defense line against environmental contaminants, protecting internal greases from emulsification and breakdown.

To maintain peak operating performance and extend component lifespan, service teams should implement standardized preventive maintenance schedules tailored to operating environments.

  1. Periodic Seal Inspection: Clean and inspect outer rubber dust seals every 2,500 kilometers or immediately following severe wet-weather operation.

  2. Freehub Lubrication: Apply specialized low-viscosity freehub grease or high-performance oil to ratchet teeth and pawls. Avoid heavy wheel bearing greases, which can cause pawl stickiness and engagement failure in cold temperatures.

  3. Bearing Preload Checks: Check for subtle axial end-play in assembled wheels to ensure bearing preloads remain within factory spec, preventing uneven race wear.

Integrating a reliable Professional grade Hub High Stability into custom wheel builds helps maintain precise internal component alignment over long service intervals, minimizing downtime and lowers total cost of ownership for commercial fleets and retail riders alike.

Maintenance Protocol: Regular maintenance preserves hub integrity and extends bearing life. Always flush contaminated driver bodies with clean solvent before applying manufacturer-recommended lubricants. Never apply direct high-pressure water streams to hub end caps or bearing seals, as water can penetrate internal seal lips and cause rapid internal corrosion.

Conclusion

Selecting the ideal Bicycle Hub requires balancing precision engineering, high-grade metallurgy, bearing efficiency, and structural flange architecture. Whether assembling high-efficiency road wheelsets, rugged mountain bike platforms, or durable commercial rental fleets, prioritizing hub shell forging quality, advanced sealing systems, and precise axle integration pays dividend through superior power transfer, minimal maintenance overhead, and outstanding long-term durability. By focusing on fundamental mechanical standards, precision tolerances, and service-friendly designs, B2B procurement professionals and custom builders can confidently select high-stability hub systems that meet the demanding standards of today's global cycling industry.
