When comparing bicycle rear hub drivetrain standards, a freewheel integrates the threading mechanism and cog cluster directly onto a threaded hub shell, whereas a cassette system separates the freewheeling ratchet structure into an independent freehub body mounted directly to the hub axle, securing individual cogs with a lockring. Modern high-performance setups favor cassettes due to superior axle weight distribution, higher gear counts, and enhanced structural rigidity under severe mechanical stress.
Section | Summary |
Structural Design and Engineering Mechanics | Examines the fundamental mechanical architecture, axle leverage differences, and structural load distributions that distinguish threaded hubs from integrated freehubs. |
Transmission Efficiency and Gear Ratios | Analyzes energy transfer rates, torque conversion capabilities, and gear step progression options available across various drivetrain setups. |
Component Compatibility and Standards | Details axle threading profiles, splined engagement interfaces, lockring dimensions, and cross-compatibility parameters across different speed configurations. |
Installation and Servicing Workflows | Outlines technical steps, specialized tool requirements, and maintenance processes for disassembling, cleaning, and replacing rear hub components. |
Application Suitability and Fleet Selection | Evaluates performance requirements across urban transport, utility cycling, entry-level road fleets, and heavy-duty industrial bicycle platforms. |
The functional difference between a threaded hub system and a cassette system lies in the placement of the axle bearings relative to the drive-side load path and the location of the ratcheting mechanism.
In a traditional threaded rear hub architecture, the entire ratcheting pawl system and cog cluster form a single self-contained unit. This assembly threads directly onto external M35 metric or 1.375-inch x 24 TPI threads machined onto the drive-side flange of the rear hub body. Because the threads and internal ratcheting structure reside inside the removable cog assembly, the right-side hub bearing must sit inside the hub shell, situated inward from the outermost cog. This offset creates an unsupported drive-side axle span ranging from 30 mm to 40 mm. Under heavy pedaling loads or dynamic impact forces, this cantilevered span generates a high bending moment along the axle, increasing the mechanical risk of axle deformation or fatigue failure near the drive-side bearing race.

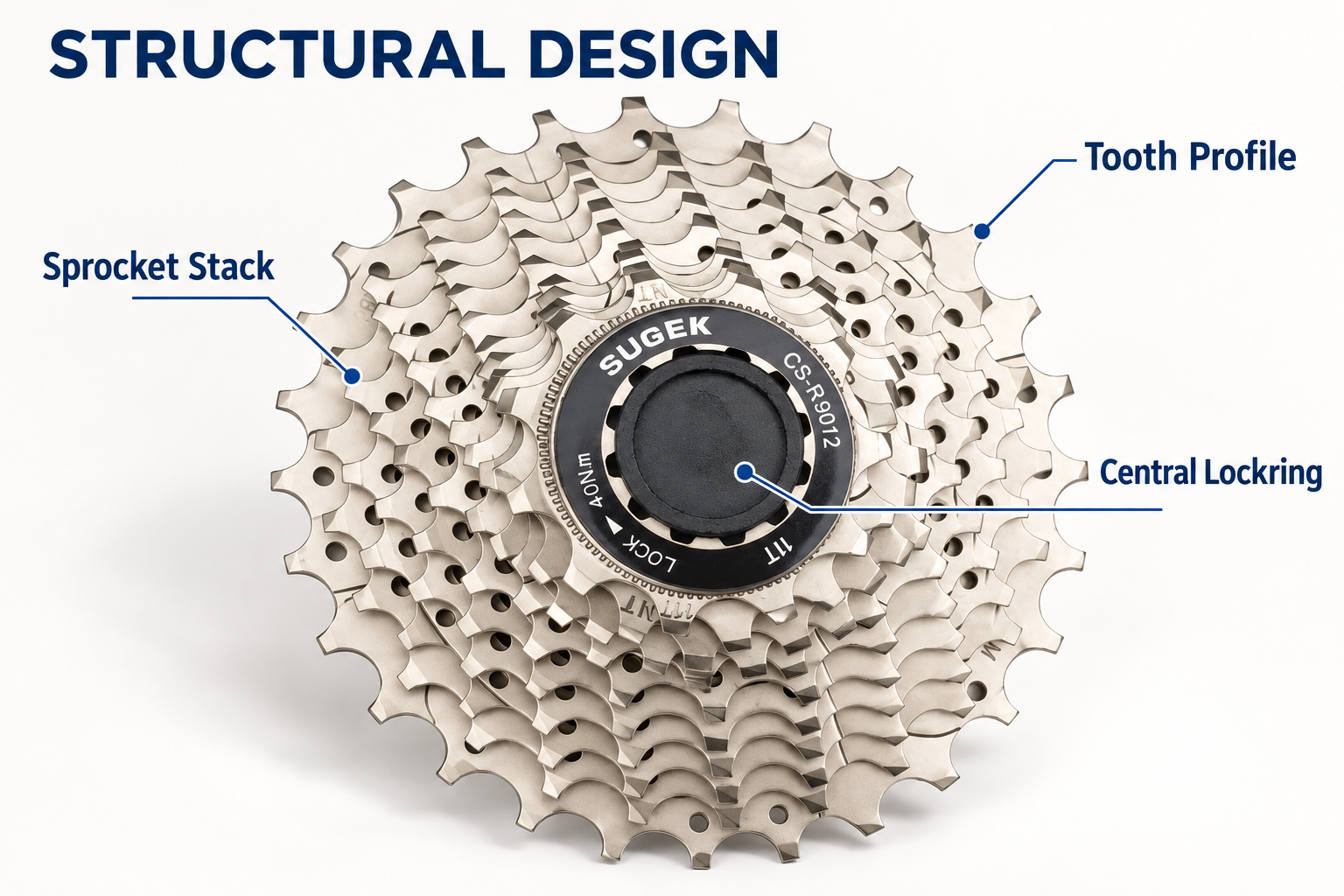

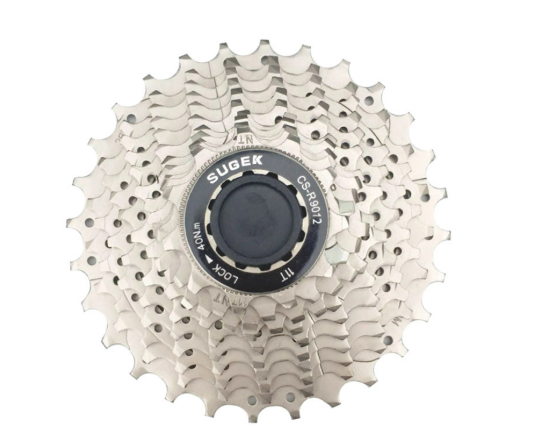

Conversely, a cassette system utilizes a freehub body permanently affixed to or integrated into the right side of the hub shell. The ratcheting mechanism resides within this freehub sleeve, while the cogs slide over external splines on its outer diameter. This integrated design permits the drive-side axle bearing to sit near the outermost edge of the freehub body, adjacent to the frame dropouts. By positioning the load-supporting bearing directly beneath the applied force of the outer chainring lines, the unsupported axle overhang is dramatically reduced. The resulting load path distributes torsional stress and vertical impact forces across a wider bearing stance, providing structural stability under high torque.
The mechanical contrast between these drivetrain standards reflects evolving engineering priorities regarding axle longevity, torque capacity, and weight distribution.
Axle Fatigue Principles: Minimizing axle deflection under peak load requires keeping the distance between the drive-side hub bearing and the frame dropout as short as possible.
Modern cassette configurations deliver broader gear ranges and finer cadence transitions, whereas threaded setups remain optimized for high-durability, standardized gear progression.
Power transmission through a rear bicycle hub depends on the mechanical efficiency of the chain-to-sprocket engagement and the rotation of the internal ratcheting pawls. In a threaded Bicycle Free Wheel unit, internal pawls engage a notched outer ring housed directly within the sprocket body. Torque applied through the chain compresses these spring-loaded pawls into the ratchet teeth, driving the hub shell forward. Due to space limitations inside the threaded body, manufacturing tolerances for internal pawls must balance compact dimensions with wear resistance. A typical high-performance Bicycle Free Wheel utilizes heat-treated alloy steel pawls and cold-forged outer teeth to maintain instant ratchet engagement while reducing friction loss during coasting.
Regarding gear ratio availability, threaded architectures face geometric constraints. The internal threading diameter restricts the minimum size of the smallest sprocket, typically capping the high-gear cog at 14 or 13 teeth. Attempting to fit an 11-tooth or 12-tooth cog over a standard threaded hub interface leaves insufficient radial clearance for internal bearings and ratchet rings. As a result, threaded systems generally operate within standard tooth counts such as 14-28T, 14-32T, or 13-34T across 5, 6, 7, or 8 speeds.
Cassette systems bypass this internal diameter constraint by moving the ratchet mechanism inside the freehub body. This frees up exterior space, allowing smaller sprockets—such as 11, 10, or even 9 teeth—to slide directly over the splined interface. The ability to run smaller high-gear cogs allows manufacturers to achieve wide ratio ranges without resorting to oversized front chainrings. Additionally, because individual cassette sprockets slide on splines, gear tooth profiles can feature precise shifting ramps and chamfered tooth gates, enabling smoother chain transitions under load.
Broadened Gear Range: Cassettes accommodate high-gear cogs down to 10T or 11T, yielding wider gear ratios for high-speed road travel and steep off-road climbing.
Optimized Cadence Progression: Higher cog counts permit tight tooth steps between gears, allowing riders to maintain stable pedaling cadences across variable terrain.
Reduced Drivetrain Mass: Splined alloy freehub bodies and stamped sprocket carriers remove unnecessary structural steel, lowering rotational mass.
Drivetrain interchangeability requires strict adherence to hub thread pitch dimensions, freehub spline profiles, axle spacing, and indexing tolerances.
Ensuring proper fitment between the rear hub, cog assembly, rear derailleur, and shifter requires precise matching of standardized interfaces. For threaded hubs, the global industry standard uses ISO 1.375-24 TPI threads (34.92 x 1.058 mm), which is mechanically compatible with older English 1.370-24 TPI specifications. Metric standard threads (34.7 x 1.0 mm) and Italian standards (35 x 24 TPI) exist in legacy applications but are not cross-compatible due to minor variations in thread pitch and pitch diameter. Installing a standard thread assembly onto a non-conforming hub shell causes thread galling or total interface stripping under high pedaling torque.
Cassette standards are organized around proprietary and open-source splined interfaces. The standard Shimano/SRAM HG (Hyperglide) splined freehub remains the industry baseline for 8, 9, 10, and 11-speed systems. This architecture utilizes nine asymmetric splines to align the cogs in a single rotational orientation, ensuring that shift ramps align correctly across the sprocket stack. Modern high-range drivetrains utilize specialized freehub profiles, such as SRAM XD/XDR or Shimano Micro Spline, to accommodate sub-11T cogs and handle increased rotational torque.
Axle spacing, or Over Locknut Dimension (OLD), directly dictates how many gear sprockets can fit within the rear frame triangle without introducing excessive chain line friction.
Servicing threaded and splined drivetrains requires specific tools and mechanical procedures to prevent interface damage during extraction.
Maintenance schedules for rear hubs vary depending on the drive mechanism used. Threaded assemblies tighten during operation because forward pedaling forces thread the internal body deeper onto the hub shell. Removing a long-installed unit requires a specialized multi-spline tool engaged with an internal tool fitting, clamped in a bench vise or operated via a long lever handle to break the initial thread friction.
Conversely, a cassette system slides onto the freehub body with minimal friction and is secured by a threaded lockring torqued to roughly 30 to 40 Nm. Removal requires a lockring tool paired with a chain whip to hold the cogs steady against the internal ratcheting direction.
1.Threaded Assembly Removal Workflow：For threaded hub bodies requiring high-torque extraction。
Invert or secure the rear wheel. Insert the matching multi-spline tool fully into the center fitting of the assembly. Secure the tool with the axle nut or quick-release skewer to prevent tool slip. Apply counter-clockwise rotational torque using a long breaker bar or bench vise until the main thread breaks free. Spin off the assembly by hand.
2.Cassette Removal Workflow：For splined freehub body setups。
Place a chain whip around a mid-sized sprocket to hold the freehub ratchet stationary. Insert the cassette lockring tool into the splined lockring. Attach a wrench to the lockring tool and apply counter-clockwise force while holding the chain whip firm. Unthread the lockring, then slide the individual cogs, spacers, and alloy carrier off the freehub body.
3.Freehub and Hub Shell Maintenance：Inspecting bearing races and engagement surfaces。
Clean the exposed hub threads or freehub splines using a non-corrosive solvent. Inspect the splines for notch wear caused by loose cogs. Apply high-tack anti-seize compound to hub threads or synthetic grease to splined freehub surfaces before installing new components.
4.Installation and Torque Verification：Final component securing process。
For threaded systems, apply anti-seize lubricant to the clean hub threads, align the assembly square to the hub axis, and thread it clockwise by hand until seated; final tightening occurs naturally during initial riding. For cassette systems, stack cogs and spacers in correct sequence, thread the lockring on by hand, and tighten to 35-40 Nm using a calibrated torque wrench.
Installation Tip: Always apply anti-seize compound to external hub threads prior to spinning on a threaded cog cluster. Friction welding and galvanic corrosion between steel cog bodies and aluminum hub shells can permanently fuse ungreased components together under sustained weather exposure.
Choosing between threaded and splined hub architectures depends on load requirements, target price points, and environmental operating conditions.
From a commercial manufacturing and fleet management perspective, both drivetrain standards offer clear operational advantages depending on the application segment. The threaded design remains a cost-effective, dependable solution for utility transport, standard commuter bicycles, and commercial fleet deployments where gear count requirements are moderate (1 to 7 speeds) and primary maintenance focuses on simplicity and low unit replacement costs. The self-contained nature of the drivetrain free wheel unit simplifies assembly-line procedures, as complete gear clusters can be pre-assembled and spun directly onto pre-built wheelsets in high-volume production facilities.
For applications involving high torque loads, cargo transport, fast road speeds, or wide-range off-road riding, the cassette standard is the necessary technical choice. Its wider bearing placement reduces axle flex, protecting against axle bending even when carrying heavy cargo or operating under high pedaling loads. Furthermore, the modular nature of splined systems allows fleet managers and individual riders to replace worn cogs or swap out the outer freehub body without replacing the entire hub shell or rebuilding the wheel spoke tension.
Urban Commuter and Utility Bicycles: Standardized threaded hubs offer exceptional cost-to-performance ratios, simplified component replacement, and robust resistance to urban environmental wear.
Heavy-Duty Cargo Bicycles: Splined freehubs with wide bearing stances are essential to withstand severe dynamic loads and prevent drive-side rear axle fatigue.
High-Speed Road and E-Bike Configurations: Precision splined interfaces provide the torque handling, narrow tooth spacing, and wide gear ratios required for high-velocity power delivery.
The durability and performance of a rear drivetrain rely on matching the hub standard to the mechanical demands of the intended application. Threaded hubs excel in economical, high-durability utility builds, while splined cassette systems offer the structural integrity and shifting performance required for high-stress applications. Selecting the appropriate hub architecture ensures optimal energy transfer, reduced axle fatigue, and long-term drivetrain reliability.
