Cyclists often hit a mechanical roadblock when repairing or upgrading rear gearing. They buy incompatible parts because drivetrain standards get confusing. Mixing up a traditional thread-on system with a modern splined setup carries real mechanical risks. Installing the wrong component strips hub threads, bends rear axles, and wastes money on useless parts. Correct identification is mandatory before you put a wrench on your bike. If you guess wrong, you might destroy the wheel hub entirely.
This guide delivers a technical evaluation for identifying a Bicycle Freewheel. We assess structural limits, outline exact criteria for selecting replacement parts, and detail the specific extraction tools required for safe removal. You will learn how to measure thread pitches, match derailleur capacities, and safely extract seized components without damaging the wheel.
Mechanism Location: A bicycle freewheel integrates both the rear sprockets and the overrunning clutch (ratcheting mechanism) into a single unit that threads directly onto the rear hub.
The Cassette Distinction: Unlike modern cassettes that slide onto a hub-mounted splined cylinder, freewheels contain their own internal coasting mechanism and require no external lockring.
Structural Limitations: Thread-on freewheels place the drive-side hub bearing further inboard, making the rear axle highly susceptible to bending or breaking under heavy loads.
Tooling Specificity: Removal requires brand-specific splined extractor tools; because pedaling torque continuously tightens the unit, extraction often requires significant mechanical leverage.
The core of this system relies on an internal ratcheting mechanism known as an overrunning clutch. Inside the central core of the gear cluster, spring-loaded steel pawls engage with a machined, stepped ring. When you pedal forward, the springs push the pawls outward into the steps. This locks the driven shaft to the driveshaft, transferring your physical effort into forward motion. When you stop pedaling, the wheel rotates faster than the pedals. The pawls ramp over the internal steps, creating the familiar clicking sound associated with coasting.
The internal mechanics require precise lubrication. Thick grease can cause the pawls to stick closed, especially in cold weather, resulting in a drivetrain that spins forward without engaging the wheel. Mechanics typically use a medium-weight oil or specialized freehub grease to ensure the leaf springs or coil springs can push the pawls outward rapidly.
This internal clutch mechanism fundamentally changes how a rider interacts with the bicycle. It safely disengages the drivetrain the moment you stop applying forward pressure. Without this mechanism, the rear wheel would force the pedals to rotate continuously at high speeds. On a standard bicycle, the coasting function prevents the pedals from forcefully striking the rider's legs during high-speed descents.
Coasting also provides necessary ground clearance. When navigating tight corners, a rider can keep the inside pedal positioned at the top of the stroke. This prevents the pedal from striking the pavement, which often causes high-speed crashes. It allows the cyclist to rest and maintain control over rough terrain without fighting the momentum of the rear wheel.
The physical architecture of this system is highly specific. The entire gear cluster, including the internal clutch, forms a single, sealed unit. This unit screws directly onto external threads machined into the right side of the rear wheel hub. The threading direction is standard right-hand (clockwise to tighten). This ensures that forward pedaling torque continuously tightens the cluster onto the hub.
The outer cogs are typically stamped steel, while the inner body is forged steel to handle the torque. Inside the unit, dozens of loose 1/8-inch steel ball bearings support the rotating outer shell. The unit locks in the forward direction to drive the wheel and spins freely in the reverse direction, allowing the chain to move backward without turning the wheel.
Historically, this thread-on design dominated the cycling industry. Nearly all multi-speed bicycles built before the late 1980s utilized this exact architecture. Brands like Schwinn, Peugeot, and Raleigh relied entirely on threaded hubs for their 5-speed and 10-speed models. Today, high-end modern bicycles have abandoned this design in favor of splined freehubs.
However, the thread-on system remains the absolute standard for vintage bicycle restorations. You will also find it heavily utilized on modern single-speed bikes, BMX bikes, and entry-level budget bicycles. Manufacturers use threaded hubs on budget bikes because machining a simple threaded aluminum shell costs significantly less than manufacturing a complex splined freehub body.
Establishing the correct drivetrain standard is the mandatory first step before purchasing any replacement components. Buying a cassette for a thread-on hub guarantees a failed repair. The two systems are mechanically incompatible. You cannot force one onto the other. Correctly identifying your current system dictates your purchasing decisions, tool selection, and repair strategy.
You can identify your system using a simple mechanical check known as the spin test. Remove the rear wheel from the bicycle. Locate the tool fittings or splines inside the center of the gear cluster. Spin the gears backward by hand. Observe the tool fittings.
If the tool fittings spin backward along with the cogs, you have a cassette.
If the tool fittings remain completely stationary while the cogs spin backward around them, you have a thread-on system.

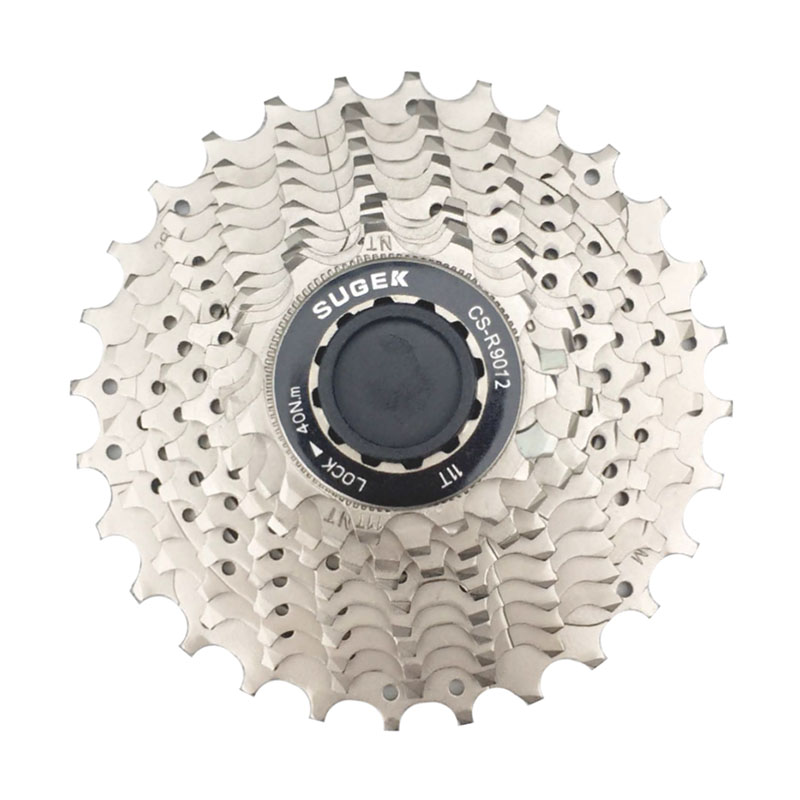

Visual cues also confirm the system type. A cassette features a distinct, flat lockring on the outermost edge. This lockring features printed torque specifications and holds the individual cogs onto the hub body. A thread-on system lacks this lockring entirely. Instead, it features a recessed, stationary core.
Feature | Thread-on System | Cassette System |
|---|---|---|
Attachment Method | Screws directly onto hub threads | Slides onto a splined freehub body |
Coasting Mechanism | Built inside the gear cluster | Built inside the hub body |
Tool Fittings | Remain stationary when cogs spin backward | Spin backward with the cogs |
Lockring | None | Required to secure cogs |
Bearing Placement | Inboard (closer to hub center) | Outboard (closer to frame dropout) |
The thread-on design harbors a significant mechanical flaw regarding load distribution. Because the coasting mechanism lives inside the gear cluster, the drive-side hub bearing must sit further inboard, closer to the center of the axle. This placement creates a long, unsupported lever arm between the bearing and the frame dropout.
When you stand on the pedals or hit a pothole, the downward force multiplies across this unsupported axle section. Standard 10x1mm threaded axles frequently bend or snap exactly at the cone nut on the drive side. The modern freehub design solves this structural issue. By moving the coasting mechanism into the hub body itself, engineers pushed the outboard bearing much closer to the frame dropout. This drastically reduces the unsupported length of the axle, increasing the load capacity of the rear wheel.
Due to the axle stress mentioned above, thread-on systems face strict gearing limitations. They are generally restricted to 5, 6, or 7 speeds. Adding more gears requires a wider cluster. A wider cluster pushes the drive-side bearing even further inboard to make room for the extra cogs. This exacerbates the axle-bending risk to unacceptable levels.
While 8-speed and even 9-speed thread-on units exist in the budget market, they are notorious for causing bent axles. Experienced mechanics generally avoid installing them on bikes ridden by heavy riders or used for off-road riding. The leverage applied to the axle on an 8-speed threaded hub almost guarantees premature axle failure under heavy load.
When purchasing a replacement, thread compatibility dictates success. The dominant global standard is ISO/English threading. This measures 1.375 inches in diameter with 24 threads per inch (1.375" x 24 tpi). Nearly all modern replacement units utilize this standard. It fits both English and Italian threaded hubs perfectly.
Vintage restorations require strict caution. Older French hubs use a 34.7 x 1 mm thread pitch. Early Italian hubs use a 35 mm x 24 tpi pitch. Forcing a modern ISO unit onto a vintage French hub will cross-thread and destroy the aluminum hub shell permanently. Always verify the hub threading before attempting installation on bicycles manufactured before 1985.
Standard | Thread Measurement | Common Application |
|---|---|---|
ISO / English | 1.375" x 24 tpi | Modern bikes, post-1985 standard |
Italian | 35 mm x 24 tpi | Vintage Italian road bikes |
French | 34.7 mm x 1 mm | Vintage French bikes (Peugeot, Motobecane) |
Metric BMX | M30 x 1 mm | BMX flip-flop hubs (small side) |
You must match the tooth count of your new gear cluster to the mechanical limits of your existing rear derailleur. Gear ratios are expressed by their smallest and largest cogs, such as 14-28T or 13-32T. If you live in a hilly area, you might want a unit featuring a massive 34-tooth low gear for easier climbing.
Before buying a larger gear cluster, check your derailleur's maximum tooth capacity. An older short-cage derailleur designed for a 28-tooth maximum will physically jam if forced to shift onto a 34-tooth cog. You must also calculate the total chain wrap capacity using this formula: (Largest Rear Cog - Smallest Rear Cog) + (Largest Front Chainring - Smallest Front Chainring). The derailleur cage must possess enough tensioning capacity to take up the slack when shifting into the smallest gears. Exceeding this limit causes the chain to hang loose and derail.
Electric bicycles introduce massive torque loads that standard bicycle components cannot survive. You must evaluate the specific requirements of your e-bike motor configuration. Mid-drive motors power the chain directly, meaning the rear gear cluster handles both human and motor torque. Rear-hub motors apply power directly to the wheel, bypassing the chain.
Many rear-hub e-bikes utilize thread-on gear clusters to manage the rider's pedal input. Because the motor casing takes up significant space in the hub, a compact thread-on design fits perfectly. When replacing this component on a 500W or 750W e-bike, you must purchase heavy-duty, e-bike specific units. Standard pawls will shatter under motor acceleration. E-bike models feature reinforced steel pawls, thicker springs, and hardened gear teeth designed to withstand higher torque loads without suffering premature internal failure.
Removal requires specific, brand-matched splined extractor tools. You cannot use pliers, grips, or generic wrenches. The internal splines vary wildly between manufacturers. Using the wrong tool will strip the internal fittings, making removal nearly impossible without destroying the component.
Tool Model | Spline / Notch Design | Compatible Brands |
|---|---|---|
Park Tool FR-1.3 | 12 Splines (22.6mm) | Shimano, SRAM, SunRace, DNP |
Park Tool FR-2 | 2 Notches (25mm) | Older SunTour |
Park Tool FR-3 | 4 Notches (24mm) | Older SunTour (4-notch) |
Park Tool FR-4 | 20 Splines (21.6mm) | Atom, Regina, Zeus |
Park Tool FR-6 | 4 Notches (32mm) | BMX / Single Speed |
Inspect the inside of your gear cluster carefully. Count the splines or notches. Measure the diameter. Order the exact matching extractor tool to prevent stripping the delicate internal fittings.
The physics of this system present a massive removal challenge. Every time you pedal forward, you apply torque that tightens the gear cluster onto the hub threads. A 200-pound rider standing on a 175mm crank arm generates immense rotational force. Over years of use, thousands of pedal strokes effectively cold-weld the component onto the aluminum hub.
Water intrusion and galvanic corrosion between the steel cluster and the aluminum hub further compound the issue. Consequently, removing a unit that has been installed for a decade requires extreme mechanical leverage. It will not unthread with a standard 8-inch hand wrench. You need heavy-duty shop equipment.
To overcome severely seized threads, abandon standard hand tools and utilize the bench vise method. This approach maximizes mechanical advantage and prevents tool slippage.
Clamp the specific extractor tool securely into a heavy-duty bench vise, pointing the splines upward.
Apply penetrating fluid to the back of the gear cluster where it meets the hub. Let it soak for fifteen minutes.
Lower the rear wheel horizontally onto the vise, slotting the tool perfectly into the internal splines.
Secure the wheel to the tool using the bicycle's quick-release skewer or axle nut. Leave a tiny gap to allow the unit to unthread slightly. This prevents the shallow tool splines from slipping and stripping the fitting under heavy torque.
Grasp the tire firmly with both hands on opposite sides. Turn the entire wheel counter-clockwise like a giant steering wheel. The diameter of the wheel provides massive leverage to break the seized threads loose.
Once the initial tension breaks, remove the skewer and unthread the unit by hand.
If the tool splines strip out completely, mechanics must resort to destructive removal. This involves removing the front dust cover, dumping out the internal bearings, lifting off the outer cog shell, and clamping the bare inner core directly into a vise to twist it off the hub. Before installing the replacement, thoroughly clean the hub threads. Apply a generous layer of anti-seize compound or waterproof marine grease to the threads. This single step ensures the new unit can be removed successfully in the future.
Upgrading from a thread-on system to a modern cassette system is not a simple parts swap. Because the hub architectures differ entirely, you cannot install a cassette on your current wheel. Upgrading requires purchasing an entirely new rear wheel equipped with a modern freehub body.
Alternatively, you must pay a mechanic to rebuild your current wheel around a new hub. Wheel building labor often costs more than buying a pre-built machine-laced wheel. You must weigh the high initial cost of a new wheel against the long-term durability and wider component availability of the modern standard. A basic thread-on replacement cluster costs very little, making it the most economical short-term fix.
Maintaining the traditional thread-on system proves optimal in several specific scenarios. If you are restoring a vintage bicycle, keeping the original hub preserves historical authenticity and aesthetic value. For strict budget constraints, replacing a worn thread-on gear cluster costs a fraction of a new wheel build.
Low-impact commuter bicycles rarely generate enough force to bend rear axles, making the older technology perfectly adequate for riding on paved bike paths. Finally, if you operate a rear-hub e-bike, the motor casing often dictates the use of a thread-on system, leaving you no alternative but to maintain it with heavy-duty e-bike rated components.
Certain riding conditions demand an immediate upgrade to a modern freehub system. If you experience frequent axle breakage, the unsupported lever arm of your current hub is failing under your weight or riding style. Upgrading eliminates this structural flaw entirely.
If you desire modern 9, 10, 11, or 12-speed gearing, you must upgrade. Thread-on systems cannot safely accommodate these widths without catastrophic axle failure. Heavy touring with loaded panniers or aggressive off-road mountain biking applies massive stress to the rear axle. These disciplines require the superior load distribution provided by a modern splined hub.
Remove your rear wheel and perform the visual spin test to confirm whether your hub uses a threaded or splined architecture.
Count the internal splines or notches on your current gear cluster to order the exact matching extractor tool for safe removal.
Calculate your rear derailleur's maximum tooth capacity and chain wrap limits before purchasing a wider gear ratio.
Apply a generous layer of anti-seize compound to the hub threads before installing the new unit to prevent future cold-welding.
A: No. They are mechanically incompatible. A thread-on hub features external threads, while a cassette requires a splined cylinder to slide onto. Upgrading to a cassette requires purchasing an entirely new rear wheel or rebuilding your current wheel with a new hub.
A: Perform the spin test. Spin the rear gears backward. If the tool fittings inside the center of the cogs remain stationary, you have a thread-on system. If the tool fittings spin backward with the cogs, and you see a flat lockring on the outside, you have a freehub.
A: The design forces the drive-side hub bearing further inboard to make room for the internal coasting mechanism. This creates a long, unsupported section of the axle between the bearing and the frame. Heavy pedaling loads multiply across this gap, causing the axle to bend or snap.
A: No. Removal tools vary significantly by brand and era. Shimano and SRAM use a 12-spline tool. Older SunTour models require a two-notch or four-notch tool. BMX bikes often use a larger four-notch tool. You must match the tool exactly to your component.
A: Upgrading to 8-speed is physically possible but highly discouraged. The wider 8-speed cluster pushes the bearing further inboard, drastically increasing the risk of axle breakage. Upgrading to 9-speed or higher requires switching to a modern freehub and cassette system.
A: No. Chain whips are only required for removing cassettes. Because a thread-on system locks internally when you turn it counter-clockwise for removal, you only need the specific splined extractor tool and a large wrench or bench vise to unthread it from the hub.
